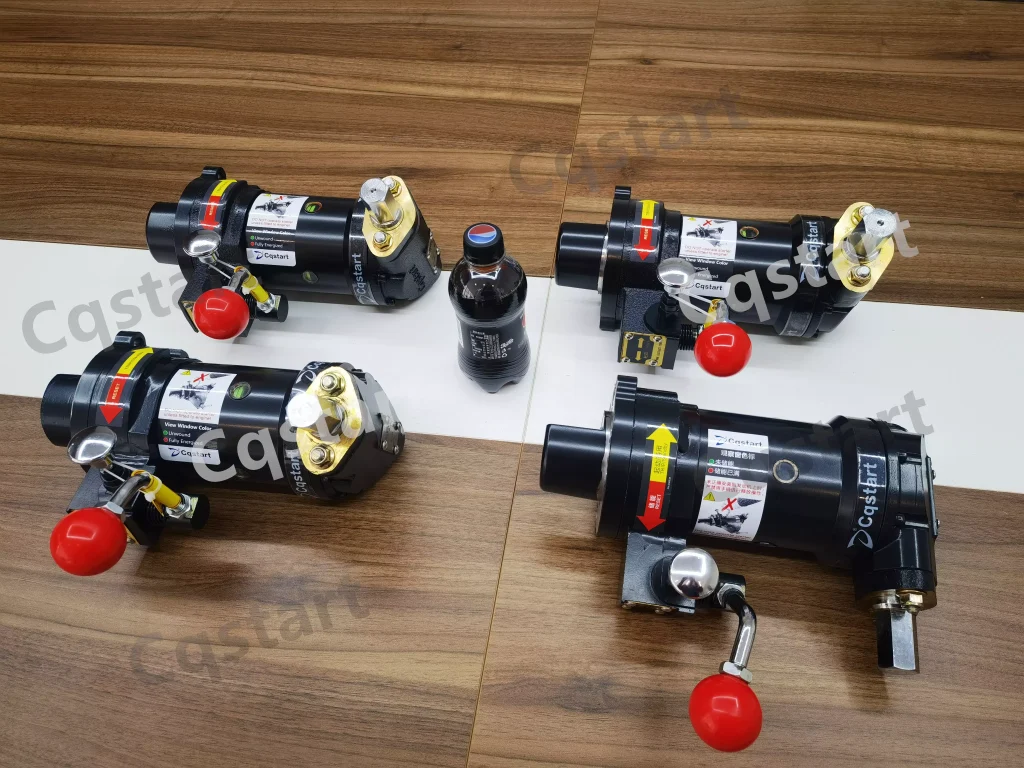

2系列弹簧储能起动机 (适配排量7-10升的发动机)

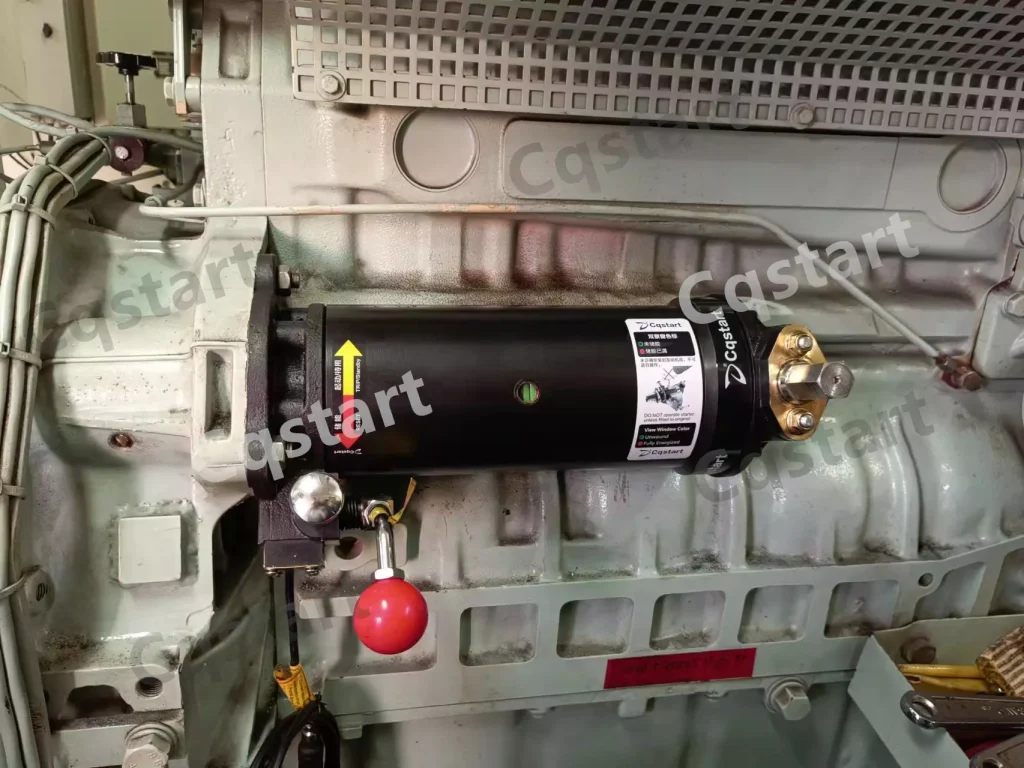

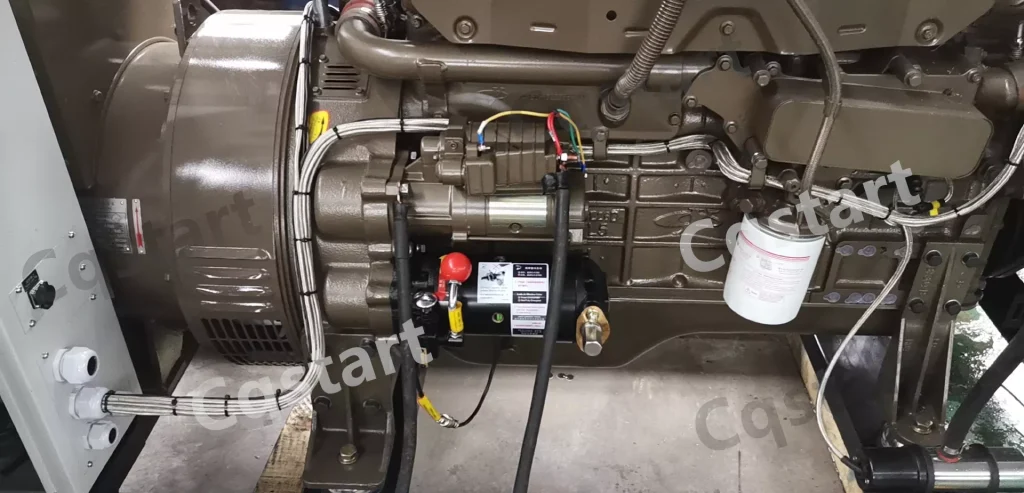

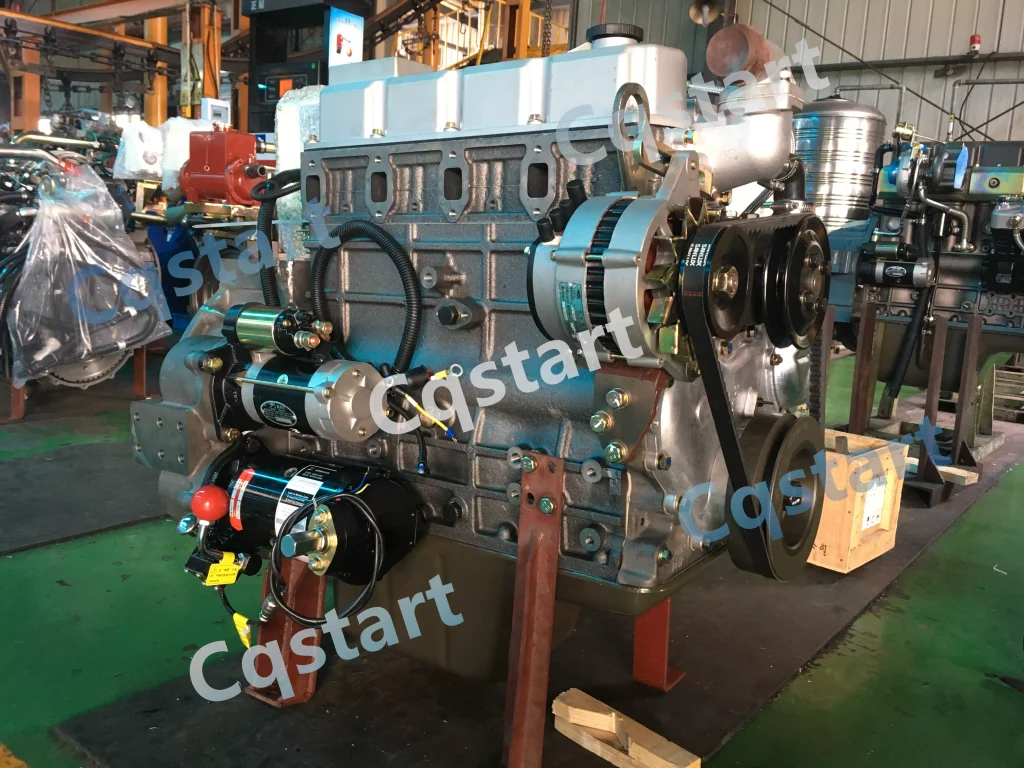

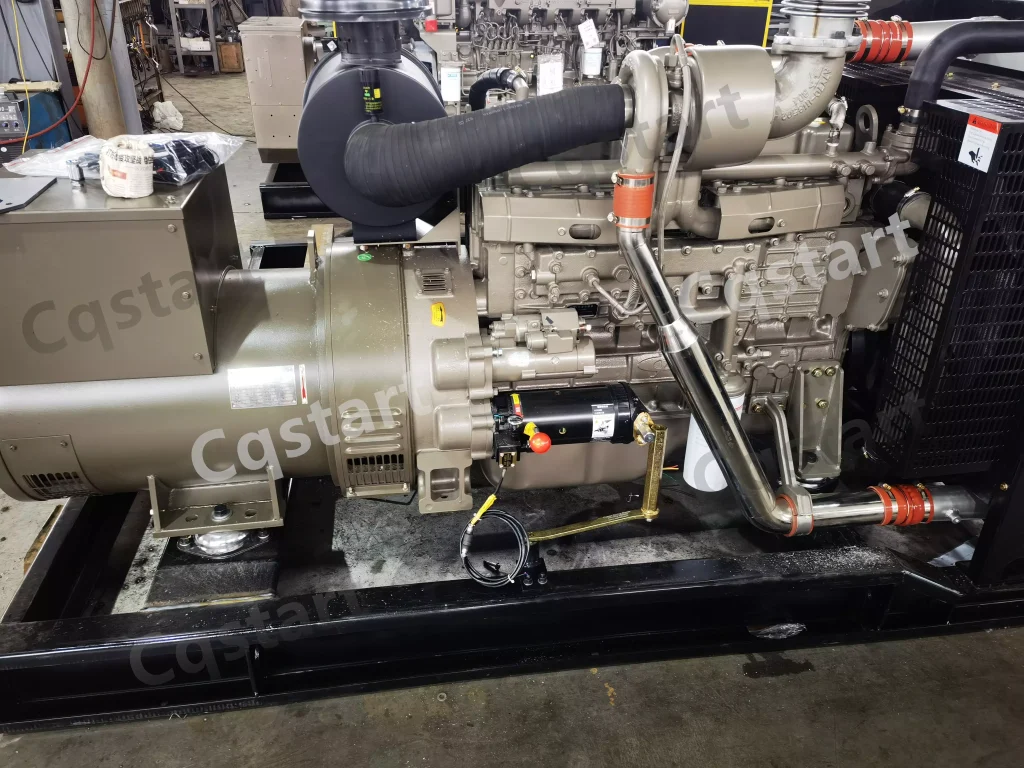

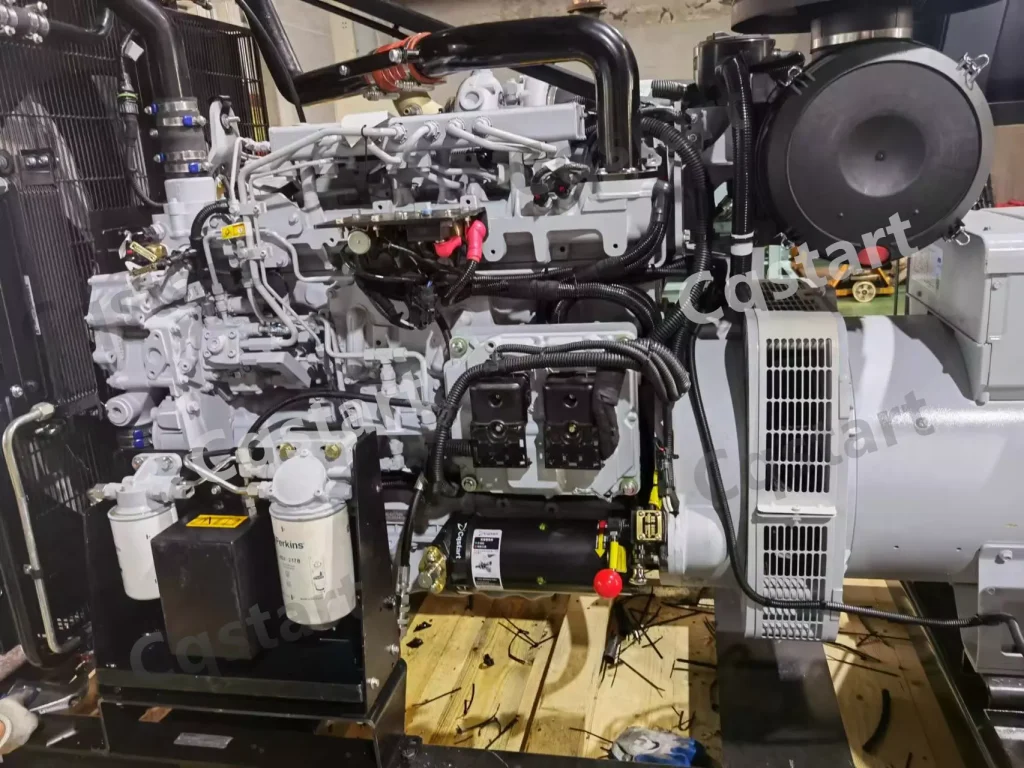

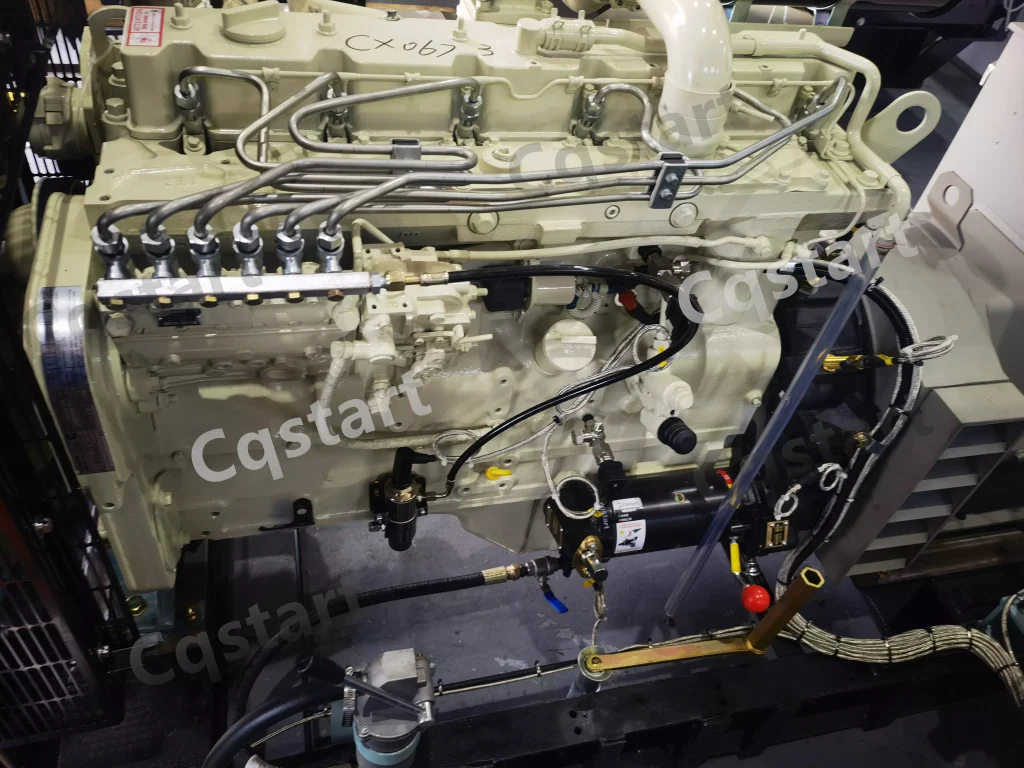

重庆双奥/Cqstart 2系列弹簧储能起动机，适配7-10升排量的柴油机，广泛用于船用应急发电机。
产品详情
适配发动机型号
- 康明斯6C
- 康明斯QSB7
- 约翰迪尔6068

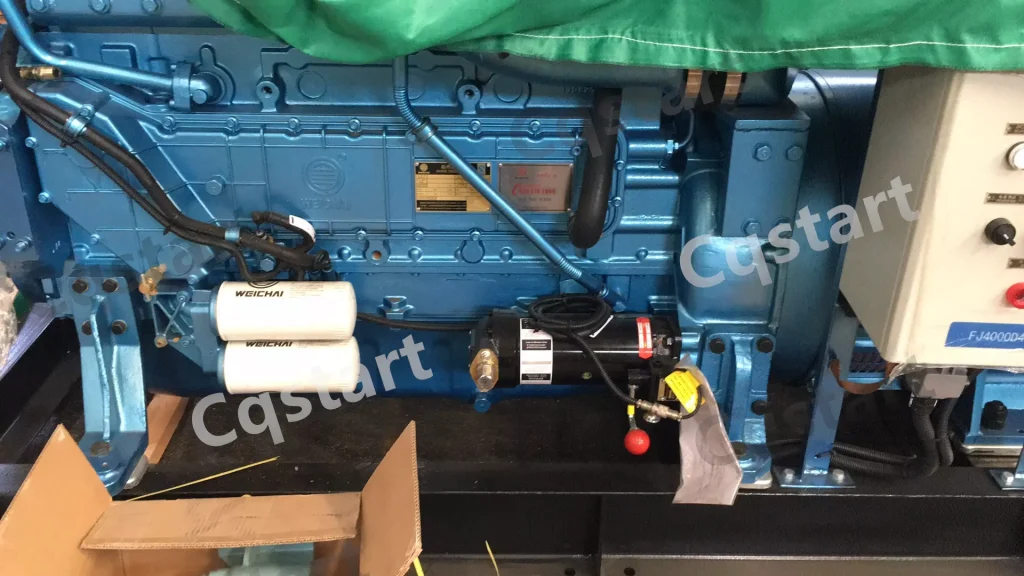

- 潍柴WP10
- 道依茨BF6M1015
- 河柴TBD234 V6/V8
2系列弹簧起动器的特点
- 适用于排量7-10升的发动机
- 坚固耐用的设计，恶劣的环境同样适用，如高湿度和盐雾
- 环保，不需要电池，环境可持续
- 不依赖外部电源，适合在不稳定或紧急情况下使用
弹簧储能起动机规格 操作视频
| Cqstart弹簧储能起动机 | 2系列 | |
| MDP | ||
| 安装接口 | SAE#标准结构号 | 1, 2, 3 |
| 柴油机排量 | 升(L) / 每缸 & 最多气缸数 | 1.7 & 6 |
| 1.4 & 8 | ||
| 驱动力矩（推荐） | Nm | 126 |
| 最大盘动力矩 | Nm | 100 |
| 重量 | Kg | 21 |
| 盘动圈数 | 圈 | 2+11 |
重庆双奥/Cqstart为满足各种柴油机的不同需求，提供SAE全系标准接口，也可以根据需求定制化开发。
数百种特种合金齿轮方案，坚固耐用，适配不同的应用。多种模数及齿数，压力角，适配不同机型。
Product Features
1. Product Function of Cqstart Spring Starter :
The starter can compress the springs and store high energy within the unit, then release energy rapidly to start the engine.
It only needs hand cranking and releasing.
2. Typical Features of Cqstart Spring Starter :
a. Adaptability (Adapt to harsh working conditions, including the conditions with spark, chemistry and wet.)
b. Safety (It is a type of mechanical starter, which can be directly operated by people.)
c. Simple and Complete Structure (Independent hand-cranking working system, with no electricity, gas or other energy systems.)
d. Swift (Easy to operate, and it can release the energy rapidly.)
e. Maintenance-free (Resistant high/low temperature, corrosion resistance. There is no maintenance cost.)
f. Reliability (Reasonable design, mature technology, high-quality material, strict control.)
g. Preventor (Prevent misoperations on dual motor engines.)
